State-of-the-art Time Attendance software and hardware that integrates the most advanced HR technologies with innovative networking capabilities to bring you full-featured security solutions serving any size facility.

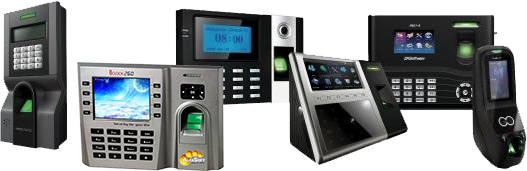

Time Attendance Terminals

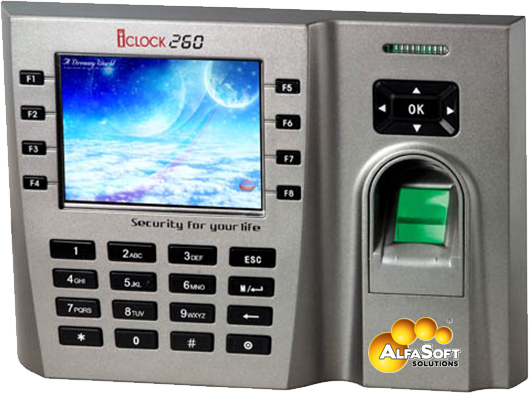

IClock260 Fingerprint Standalone TA Terminal

iClock260 is an innovative biometric fingerprint reader for Time & Attendance applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The iClock260 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The 3.5” TFT can display more information vividly, including user photo, fingerprint image quality and verification result etc. 8 function keys are the shortcuts to change the attendance status, work-code or to browse the short message, and can be defined as required. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds.

Data Sheet


TFT Color Screen


Audio-visual indication for acceptance and rejection of valid/invalid fingerprints.

More simple and convenient operation.

Slim and Elegant Design


Sleek and slim design for narrow spaces.


Fast and Accurate Fingerprint Algorithm


1 touch less than a-second user recognition.

Store 8,000 fingerprint templates, 100,000 cards and 200,000 transactions.

For Software Developers


Free PULL SDK and development tools are available for developers/partners

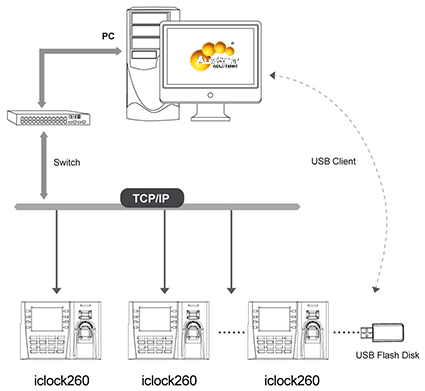

Easy Installation and Connectivity


Network interface by TCP/IP or RS485

Easy Operation and Management


Work without computer.

Built-in serial and Ethernet ports.

Built-in USB port allows for manual data transfer







Technical Specifications

Fingerprint Capacity

8000 Templates

ID Card Capacity

100,000 Templates

Transaction Capacity

200,000 Transactions

Sensor

ZK Optical Sensor

Algorithm Version

ZK Finger V10.0

Communication

RS232/485, TCP/IP, USB-host

Standard Functions

Workcode, SMS, DLST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input, photo-ID

Optional Functions

ID/Mifare,Webserver,9 digit user ID, Wi-Fi

Display

3.5 inches TFT LCD Color Screen

Power Supply

12V DC 1.5A

Operating Temperature

0 °C- 45 °C

Operating Humidity

20%-80%

Dimension

192X137X45 mm

Gross Weight

1.05 kg
